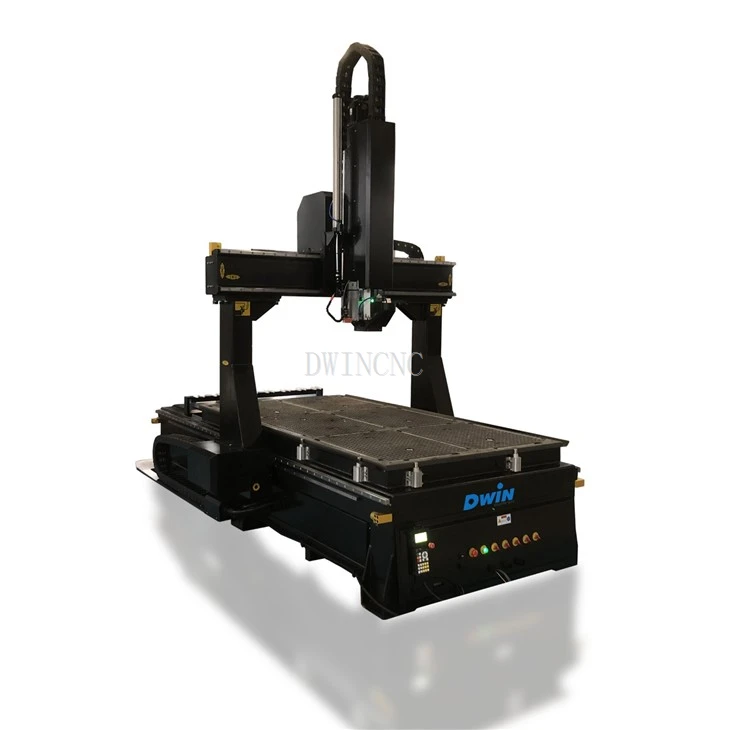

4 Axis ATC CNC Router Machine

The 4 axis CNC router machine is equipped with a spindle that can rotate 180 degrees,enabling the router bit to move in multiple directions and angles,idea for different 3D curved surface carvings.

Features of 4 Axis CNC Router For 3D Curved Surface Carvings

A 4 axis CNC Router machine can do all a 3 axis CNC machine can do.
The 4 axis CNC machine is especially designed for processing on different 3D curved surface carving.
9KW ATC spindle can rotate ±90 degree, which is suitable for side milling, drilling, cutting, lock slot and so on.
With a heavy-duty frame and gantry, the machine has a stronger structure, ensuring stable and safe operation.
Imported high-precision ball screw, which moving smoothly, to ensure the machine's high precision.
12 pieces linear type tool changer with ISO30 tool holder,suitable for different bits.

Machine Details

Machine Parameters

Model	4 Axis ATC CNC Router
Working Area(mm)	13002500500 option
A Axis	±90 degree
Spindle	9kw ATC Spindle
Spindle Rotating Speed	0-18000rpm/min
X, Y Structure	Rack and Pinion Drive,Hiwin Rail Linear Bearings
Z Structure	Hiwin Rail Linear Bearings and Ball Screw
Inverter	Delta inverter
Motor	Leadshine servo motors
Work Voltage	Ac380v 50Hz/60Hz
Control System	BMP,PLT,etc
Table Surface	Vaccum table or T-slot
Compatible Software	Artcam, Alphcam, Type 3, Ucancam, Aspire, Powemill, etc
Command	G Code / U00 / Mmg / Plt
Weight	9000kg

Machine Applications

Industry	Products
Woodworking	Wood doors Cabinets Office furniture Speakers Musical instruments
Panel Processing	Insulation Plastic and chemical PCB,ABS,PP,PE and other carbon mixture
Decoration	Acrylic PVC MDF Plastic Copper,Aluminum and other soft metal,engraving and milling

Machine Projects

Sample500

Contact Us

We will complete the satisfactory order for you.

Send Inquiry Now

Packing and Shipping

product-1600-1200

1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool.

2.Fumigation wooden box: Saving the transport time.

3.Whole film packaging machine: The outermost is a wooden box with a fixed template.

4.Wooden box at the bottom of a solid iron socket for easy handling.

Shippping usually takes 15-30 days.If you have specific requirments that need to be afdressed beforehand,we will do our best to accommodate yours needs through special manufacturing arrangements.
